Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Smart Bes
  • Model Number: A492
  • Base Material: FR4, TG, CEM-1, Aluminium
  • Copper Thickness: 0.5-2.0 oz
  • Board Thickness: 0.2-3.0mm
  • Min. Hole Size: 0.25mm
  • Min. Line Width: 0.2mm
  • Min. Line Spacing: 0.2mm
  • Surface Finishing: spray tin,HASL, lead free, immersion gold,Gold-plate, OSP, ENIG etc

Packaging & Delivery

Packaging Details: Vaccum package
Delivery Detail: 7 days

                                          ♥ Welcome to Smart bes ♥



We provide one-stop service from PCB to PCBA, Quick-turn prototypes to mass production



For pcb,we can make 1-12layers at very competitive price , small order acceptable
Wish good quality, on time delivery and perfect service should be the reason you choose us as a pcb &pcba supplier in China!







1.Detailed Specification of PCB Manufacturing



Base material:FR4, TG, CEM-1, Rogers, Aluminium
Layer:1-30 layer
Thickness:0.4-3.0mm
Copper thickness:0.5-3OZ
Solder mask:green, red, blue, yellow, black, white etc
Min. line width0.2mm
Min. line space:0.2mm
Min. hole diameter:0.25mm
Max board size :600 x 1200mm
Surface treatment:                          HALS/HALS lead free/Chemical tin/Chemical Gold/Immersion gold /Inmersion Silver Gold/Osp/Gold Plating ,etc
CertificateUL,ISO9001,ISO14001,ROHS,CQC







2.Detailed Terms for Pcb Assembly





Technical requirement:



1) Professional Surface-mounting and Through-hole soldering Technology







2) Various sizes like 1206,0805,0603 components SMT technology







3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.







4) PCB Assembly With UL,CE,FCC,Rohs Approval







5) Nitrogen gas reflow soldering technology for SMT.







6) High Standard SMT&Solder Assembly Line







7) High density interconnected board placement technology capacity.







Quote requirement:



1)Gerber file and Bom list



2)Clear quantity of pcba or pcba sample for us



3)Test method for PCBA

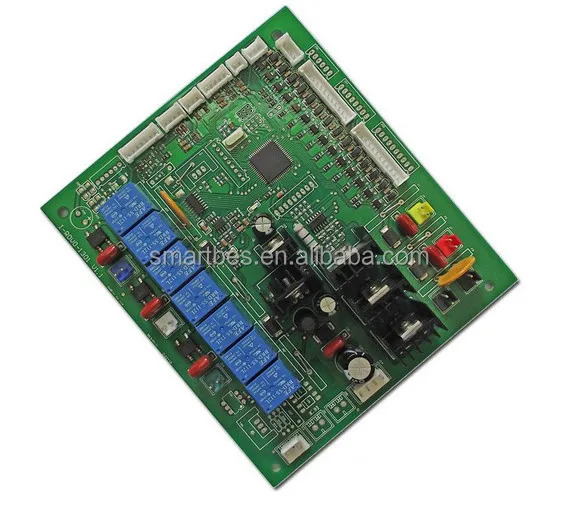

Products Display:































Certification:




UL Approval
ROHS
ISO9001:2000
CE certification
SGS Lead-free certification



*well and high quality control
*prompt delivery
*small order acceptable
*perfect craft procedure
*customer's designs are welcome





1.Which type of PCBs do you expert in?



We are specialized in producing Singe-side PCB,Double-side PCB, Multilayer PCB,Aluminium PCB,Spray Tin PCB,Immersed Gold PCB, etc.



2.What is your Lead time?



Lead time is usually punctual here, usually 5-10 days for PCB sample, 10-15 days for mass production.  For some special situation, we can also advise customer in advance to avoid any inexpectation or loss at customer side.



3.What is your testing policy and how you controle the quality?



For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there’s many steps to PCB production, we usually do inspection after every step.



4.What is your package?



With Inner vacuum package and out carton.



5.PCB shipment?



This is depend on customer, sometimes we ship through our forwarder, who is also the agency of DHL, TNT, UPS, Fedex, and so on. Our forwarder can provide too much better freight cost than we get directly from those express enterprise.



6.What is your produce ability?



Our ability is average 30,000 square meters per month.



7.I only have the pcb sample, not pcb file, can you produce it for me?



Yes, we can copy file based on your sample, this file names gerber, and production then is accorded to gerber file.



8.Can you design gerber file?



We can design gerber file if customer can provide us schematic, schematic sample can also be provided if customer want.



9.What kind of PCB file format can you accept for production? What CAM software do you use?



We accept Gerber file for production. CAM350, GENESIS, UCAM, GC-CAM, V-2000.



10.Will you allow me to put several part number together into one panel?



Yes, this is usually happen in we factory, this way can help customers reduce some cost and to a certain degree, it can help reduce some assembly cost.



11.What is your minimum order quantity?



We have no limitation on MOQ, prototype, medium volume and large volume are all acceptable.



12.Will RoHS Lead-Free Custom Spec. Boards be marked with lead-free symbol?



Yes, can, but need customer to specify this requirement in file.



13.Are my design files safe when I submit them to you for manufacturing?



Any customer’s file will be protected very well here in our factory and we will not let any third party know. We can sign NDA with you.







Comparison of Competing Products



Num.Material TechnologyOur ProductionGeneral Production
1Regular/Special

1.Our (TG170)FR4:

high quality materials, excellent heat resistance, won't distort break in high temperature, no foaming, no burning, good performance in electrical charge, impact resistance, humidity-resistance



2.Our FR4

good performance in electrical charge, impact resistance, humidity-resistance



3.Our CEM

no-burr



4.Our Rogers

Good performance in high frequency



5.Our Aluminum

Excellent heat dispersion

1.General FR4

High heat work



2.General CEM

Expand and deform in damp conditions

2FactoryWe have automatic production line. The automatic production line improves the precision and efficiency of PCB producing,it makes surface brighter, cleaner and more smooth, and it helps reduce the cost.Artificial production line
3Blind/buried via board, High Density Interconnect(1+1,N+1)Application of HDI technology reducing the thickness and the volume of PCB boards, increasing the density of 3-D wiring design.Difficult manufacturer, high cost
4ImpedanceGood performance in reliability and stability of signal sending and receivingHigh cost
5Surface Technics

1.IMG:smooth surface, good adhesion, no oxidation under long using

2.gold plating(thick gold:1-50U"):good wear-resistance

3.HASL:better price, not easy oxidation, easy to welding, smooth surface

4.HAL: better price, not easy oxidation, easy to welding

1.IMG:high price

2.Gold plating(thick gold):high price

3.HAL:surface is not flat, not suitable for BAG packaging

6Copper Via/Surface(20-25UM,0.5-60Z)Laser holing: Min 0.1MM, Mechanical holing: Min 0.2MMHard to reach 0.1MM
7Multilayer board(4-20 L),BGA(CPU)

BGA:high density, high performance, multifunctional, increase thermal reliability, good performance in electroheat property, MIN width/space: 3/3MIL



Multilayer board:strong microporous, high reliability

Difficult manufacturer,high cost
8TestTo assure quality, avoid wasting after installing and scraping, save cost, save the time of reworkCareless







Are you still looking for reliable PCBA factory for your project or prototype testing ?



We're your BEST Choice !














If we didn't meet the requirements in your contract, Alibaba.com will refund your covered amount.



 World wide:







Shipping :



FEDEX, UPS, DHL, EMS ,TNT via Express company

Also can follow customer by Sea.

Freight collect or prepaid:Of your choice.







We know time is money.Pls don't hesitate to contact us with phone,email or live chat.We'll do our best to reply you within 12 hours!
